New stereo install kit help please

Discussion in 'Electrical & Stereo' started by 1994gt, Jan 12, 2014.

  1. 1994gt

    1994gt Member

    Messages:
    115
    Likes Received:
    0
    Joined:
    Sep 21, 2013
    I bought a new CD player for my car. 94 mustang gt non Mach 460. Bought all of it, install kit and all, from best buy. Got home and the flat connector from the kit that has the speaker wires doesn't come close to my factory harness. It does for the power and ground wires. So I though I have the premium stereo so I bought a kit for all 94-00 mustangs and it's closer but still way off. I need help figuring out what harness I need. I've install stereos lots of times but this has me stumped. Pics to come.

    [​IMG]

    [​IMG]

    Any quick responses would be appreciated.

  2. KillNThrill24

    KillNThrill24 Legend

    Messages:
    7,472
    Likes Received:
    408
    Joined:
    Apr 16, 2012
    Location:
    Cleveland Ohio
    That LOOKS right to me... You plug the wide black harness into each other and plug the small black harness into your small Grey harness IIRC. I know one harness on the car doesn't get used

    Sent from my SCH-I605 using Tapatalk

  3. KillNThrill24

    KillNThrill24 Legend

    Messages:
    7,472
    Likes Received:
    408
    Joined:
    Apr 16, 2012
    Location:
    Cleveland Ohio
    [MENTION=11896]ttocs[/MENTION] set him straight if I'm wrong lol

    Sent from my SCH-I605 using Tapatalk

  4. 1994gt

    1994gt Member

    Messages:
    115
    Likes Received:
    0
    Joined:
    Sep 21, 2013
    [​IMG]

    these are the wiring harnesses that are supposed to plug into the car. Keep in mind I have 2 sets here. The right 2 are for the speakers and the left ones are for power and ground.

  5. 1994gt

    1994gt Member

    Messages:
    115
    Likes Received:
    0
    Joined:
    Sep 21, 2013
    [​IMG]

    this is all the wiring that's in my car

  6. 1994gt

    1994gt Member

    Messages:
    115
    Likes Received:
    0
    Joined:
    Sep 21, 2013
    [​IMG]

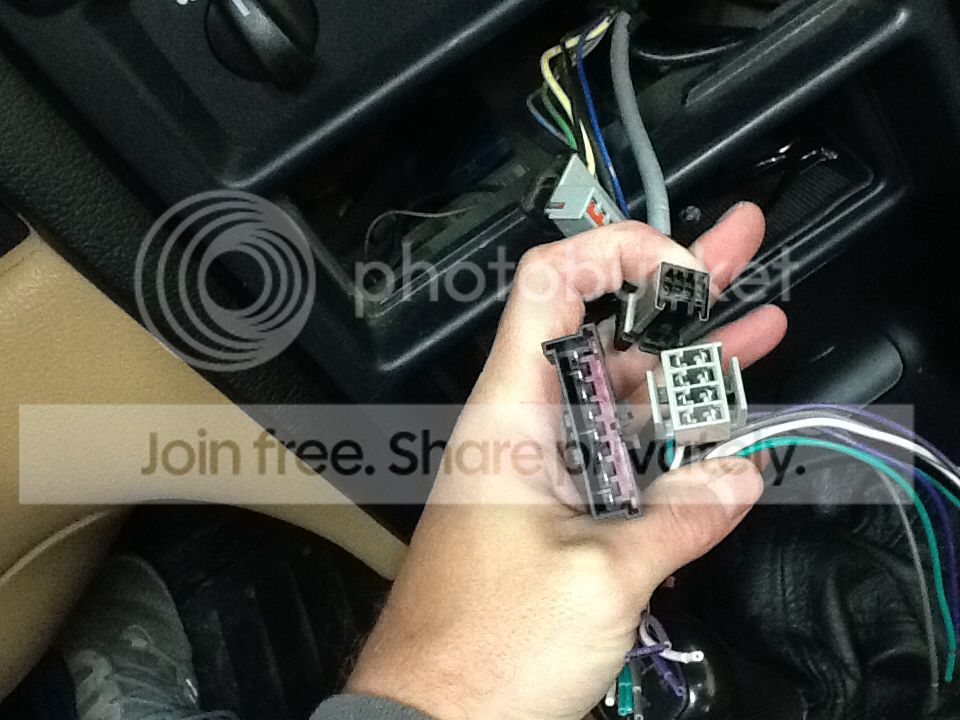

    the left connector is from the car and the right connector is from the kit. These in no way connect together and the gray connector is the only connector close to the factory size.

  7. ttocs

    ttocs Legend

    Messages:
    23,257
    Likes Received:
    943
    Joined:
    Oct 9, 2009
    Location:
    Evansville Indiana
    You don't have the mach with the tweeters by the mirrors but you had a premium stereo. Look down under the radio and you will see an octagonal shaped metal box with a bunch of holes in it and 2 hrns's going to it. It really was just an add-on to jack the price up from what I can figure out as it made no difference in sound and you are better off bypassing it. Good news is that its easy to bypass and you have the parts too do it. If you look in this picture inside the hole for the radio on the right hand side you will see the faint image of a black 8-pin hrns that looks almost like the grey power hrns you are holding in the picture. It is connected too the inside of the console and one end goes too that shitty amp(you can pull out if you want), the other end goes directly to your speakers. Disconnect the two hrns's and now that black 8-pin speaker hrns that was in the kit will plug into the male hrns of the two in the dash you disconnected. Wire up white to white, white/blk to white/blk, ect and then go connect your hrns's and turn it on to rock.

  8. 1994gt

    1994gt Member

    Messages:
    115
    Likes Received:
    0
    Joined:
    Sep 21, 2013
    [​IMG]

    is this the correct harness you were talking about?

  9. 1994gt

    1994gt Member

    Messages:
    115
    Likes Received:
    0
    Joined:
    Sep 21, 2013
    And do I now use that gray harness next to it or the one that went to the back of the radio for the power and ground?

  10. KillNThrill24

    KillNThrill24 Legend

    Messages:
    7,472
    Likes Received:
    408
    Joined:
    Apr 16, 2012
    Location:
    Cleveland Ohio
    Scotts the man

    Sent from my SCH-I605 using Tapatalk

  11. ttocs

    ttocs Legend

    Messages:
    23,257
    Likes Received:
    943
    Joined:
    Oct 9, 2009
    Location:
    Evansville Indiana
    Yes use the grey hrns that has the power/ground/dimmer wires on it for power, and the black 8-pin for the speaker. You can wire them inside your house(again just match the wire colors) and go out and plug them it and it should power up with the key and sound better too.

  12. ttocs

    ttocs Legend

    Messages:
    23,257
    Likes Received:
    943
    Joined:
    Oct 9, 2009
    Location:
    Evansville Indiana
    Yes that is the harness for the speakers and the one next too it for power.

  13. 1994gt

    1994gt Member

    Messages:
    115
    Likes Received:
    0
    Joined:
    Sep 21, 2013
    Go it figured out. All good to go. New stereo sounds much better than the pos stocker. Thanks for all the help ttocs. It's very much appreciated!
