I'm Confused...

CobraClone94 · Mar 14, 2012

Hey all,

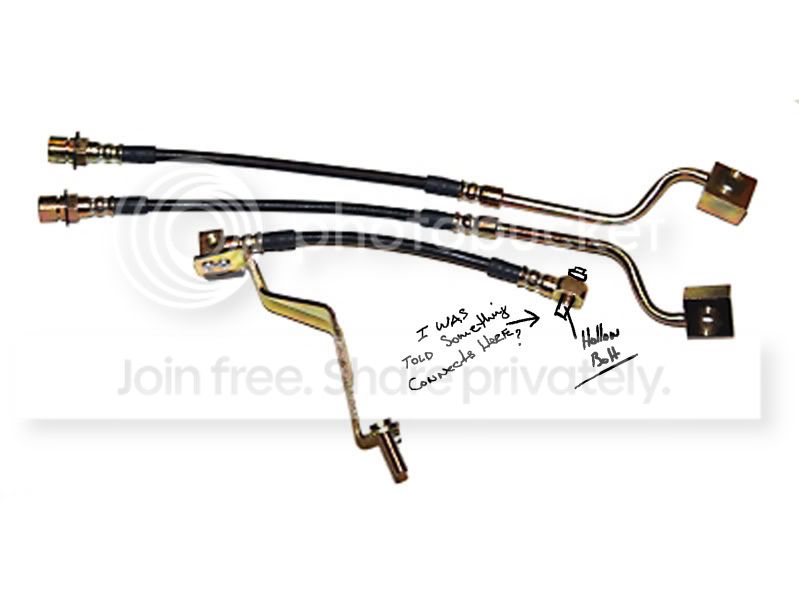

I really need some help, I am replacing the brake lines on my 94 GT, and I have all the lines but one installed, I am told I am missing a part to complete them.

This part in the pic, I have and is already installed, I am told I need a small block of some sort to connect my final line too, Does anyone know what this part is called, or what the part number in?

I do not have the org part, It was removed and toss by the previous owner.

Thanks in advance.

Don

CobraClone94 · Mar 14, 2012

Here's a pic of my car, and the end that needs this part.

Slykin · Mar 14, 2012

So the "hollow bolt" IS what you're looking for? If so, that's called a banjo bolt, and they're expensive. You'll also need two copper crush washers per line to put where the grooves are on the block.

Edit: If the banjo bolt/crush washers is not what you need.. then you should be fine. The lines go right into the caliper.

CobraClone94 · Mar 14, 2012

Do i need to get the two lines that are shown in the pic, cause i have the line installed already and there connected to the part i have the arrow pointed at.....I do have the bolt (Thanks god) LOL!

Don

Slykin · Mar 14, 2012

I'm not gonna lie... i'm confused also haha. The top two lines in the picture are the fender well brake lines, not sure what the one on bottom is. You should only need 1 line per corner on the front brakes. On the rear you need a third line from the axle to the chassis. I'm not sure what you got going on there...

Edit: Lmao, you ARE on the rear of the car. Doh. Wow. Well, i've never messed with that line, but here is a pic of that third line from MM. http://www.maximummotorsports.com/content/large_images/brakes/MMBK1R_LG.jpg. I'll keep looking for that piece.

CobraClone94 · Mar 14, 2012

Yeah its a weird sit, All the brake lines are hung and connected, cept one, the Right rear line, The rear lines that run along the axle are connected to the Flex hose i pictured. I was told there should be a box of some kind that connects to the Bolt, so that the line from the front can connect to it.....

CobraClone94 · Mar 14, 2012

Slykin said:
I'm not gonna lie... i'm confused also haha. The top two lines in the picture are the fender well brake lines, not sure what the one on bottom is. You should only need 1 line per corner on the front brakes. On the rear you need a third line from the axle to the chassis. I'm not sure what you got going on there...

Edit: Lmao, you ARE on the rear of the car. Doh. Wow. Well, i've never messed with that line, but here is a pic of that third line from MM. http://www.maximummotorsports.com/content/large_images/brakes/MMBK1R_LG.jpg. I'll keep looking for that piece.

See that doesn't make sense, the final line i need comes from the front of the car and connects to the ABS block that is just under the rad, and runs the length of the car to the back.

Slykin · Mar 14, 2012

I don't think there should be anything else.. but I don't really know at this point. Tomorrow I might look under my car and see what I can find though. I can't find anything like that online.

CobraClone94 · Mar 14, 2012

I went and talked to ford, the part i need is like $6 bux, prob is, they no longer make it, I have a pic of it, and I know what i need now, So i am gonna hit the yards and see if i can pull one off a wreck.

Slykin · Mar 14, 2012

I looked under my car today to try and figure it out.. is it the T fitting? I wouldn't mind knowing in case I have the same issue.

rz5.0 · Mar 14, 2012

You have small block I beive that comes of the hardline coming from the front of the car.. It should allready be there if all you are doing is replacing the hose...

rz5.0 · Mar 14, 2012

In the rear of the car before you get to the rear end.. The other end of the hose conects to the t futting on the rear end.. Its been a while but I think thats how it goes..

CobraClone94 · Mar 14, 2012

You are all correct, it is a small block that connects to the end of the lfex line via a Bango Bolt, The prob is ford no longer make's them Ford lists it as a hose connector, and none of the parts dealers here have one. I am gonna have to hit up a yard and hope i find one on a wreck.
When they did sell them, it was a $6 part LOL!.

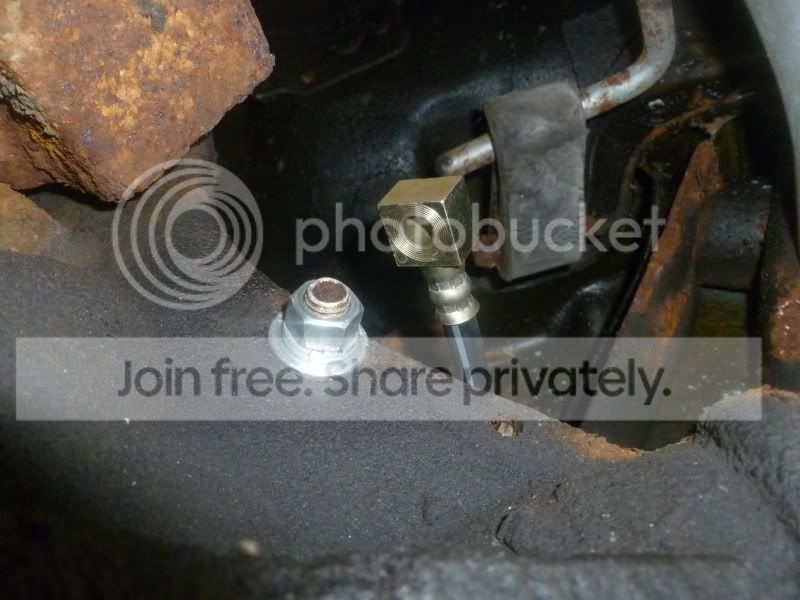

Here's a pick of it

rz5.0 · Mar 15, 2012

If you cant find it let me know..ill get it for you im tearing my old 95 down.. Ready for the scrap yard..

CobraClone94 · Mar 15, 2012

rz5.0 said:
If you cant find it let me know..ill get it for you im tearing my old 95 down.. Ready for the scrap yard..

you have a pm

rz5.0 · Mar 16, 2012

this it?

CobraClone94 · Mar 17, 2012

rz5.0 said:
this it?

Its hard to tell, form the pic, I have never seen the part myself, I have only the pic on the diagram to go by. Lets hope it is, seeing as you sent it already LOL!, I didn't even get an email that you posted on the thread, so I am just seeing it now

Let's hope it is????

Don

sweet94GT · Mar 17, 2012

Hope it works out for ya. Happy to see a fellow member was able to assit

CobraClone94 · Mar 17, 2012

sweet94GT said:
Hope it works out for ya. Happy to see a fellow member was able to assit

To be honest I was only looking for info with me being in Canada I didn't think i would get any physical help

But yeah I'm pumped, All i need is a piece of brake line and I'm rdy for a tune

Don

rz5.0 · Mar 17, 2012

That should be it.. Thats part of the hose with the banjo bolt on the bottom, hard line coming from the front of the car.. I should of cleaned it and took more pics..
