need a little help

Discussion in '94-95 5.0 - Specific' started by StangerBanger, Jan 8, 2016.

  1. StangerBanger

    StangerBanger New Member

    Messages:
    72
    Likes Received:
    0
    Joined:
    Sep 13, 2013

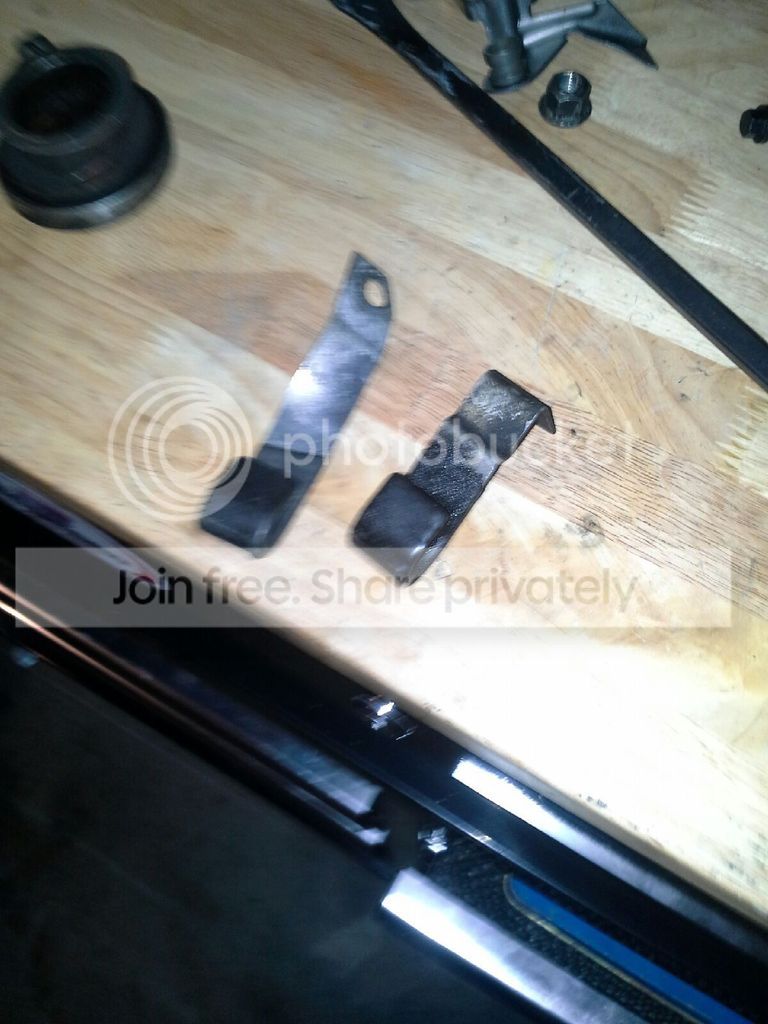

    i finally got the engine back in my car last weekend, and now i have run into a few little parts that i cant quite remember where they go lol. i took the engine out in September and didnt take many pics. there are two brackets that hold the wire/ground harness in place, which runs behind the balancer at the bottom of the timing cover

    [​IMG]

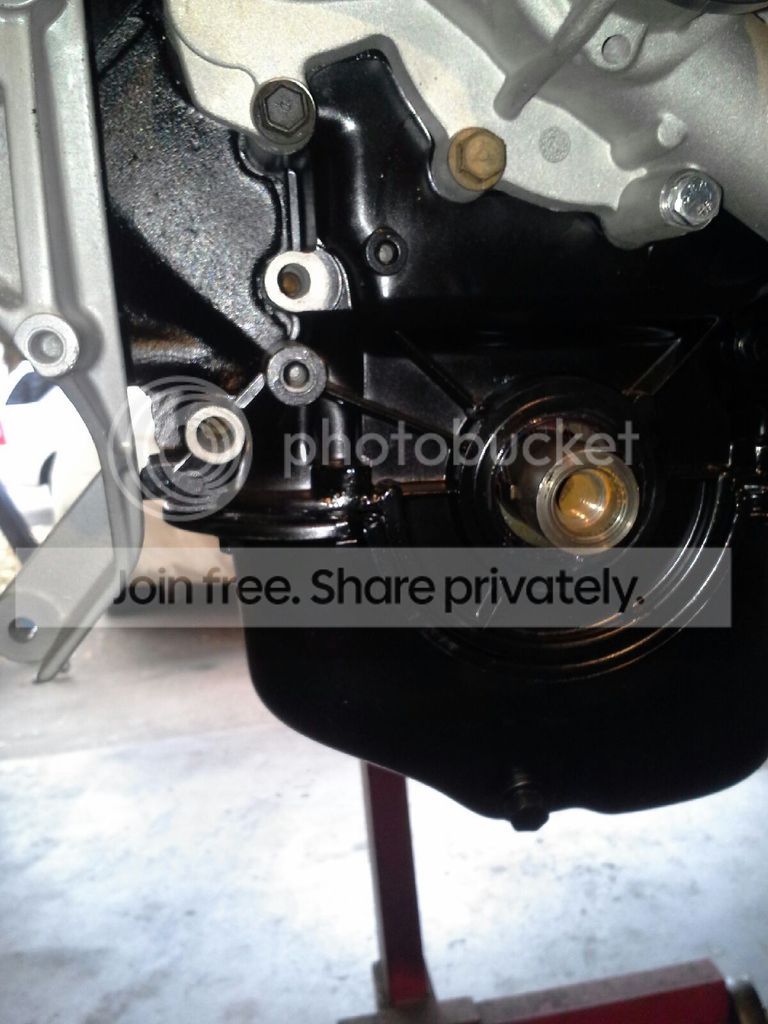

    where do these mount to? and also, what goes behind the timing pointer?

    [​IMG]

    [​IMG]

    could not find any pics showing me exactly what im looking for, and the chilton manual doesnt help either haha. thanks guys

  2. ranger56528

    ranger56528 Active Member

    Messages:
    907
    Likes Received:
    0
    Joined:
    Aug 20, 2015
    Location:
    West central Mn
    One of the brackets goes by the right front corner of the oil pan and supports a wire harness and two metal transmission lines if you have a auto other then that it holds a wire harness about a inch round in size,there should be a stud that the bolt goes on unless you removed it.
    i had to remove mine to punch a hole in my oil pan for my oil return on the turbo,just had it in my hand the other day,it looked like the longer one I believe.

  3. ranger56528

    ranger56528 Active Member

    Messages:
    907
    Likes Received:
    0
    Joined:
    Aug 20, 2015
    Location:
    West central Mn
    Now that I looked again it was the shorter one and the hooked part held the wire and was up against the oil pan,the rubber area was against the pan as to help lock it against the pan so harness could not move and my trans lines were placed above the harnes,the kink in the bracket helped keep the lines separate so they could not rub.

  4. ranger56528

    ranger56528 Active Member

    Messages:
    907
    Likes Received:
    0
    Joined:
    Aug 20, 2015
    Location:
    West central Mn
    The longer bracket might go on the left side and support the same harness.

  5. StangerBanger

    StangerBanger New Member

    Messages:
    72
    Likes Received:
    0
    Joined:
    Sep 13, 2013
    So you think the shorter one bolts up to a stud on the oil pan? Makes sense to me. Ill look around and see if I still have a stud. I probably do

  6. ranger56528

    ranger56528 Active Member

    Messages:
    907
    Likes Received:
    0
    Joined:
    Aug 20, 2015
    Location:
    West central Mn
    The stud is next to the oil pan on the block,about straight back from your pointer finger in the pic where you are holding the timing marker.it is separate from the pan,think it's like a 3/8th stud,think I used a 14mm-9/16th socket to remove the nut off the stud.ill see about jacking the front end back up and take a pic when I go out to my garage and heat it up to finish some wires later today then I'll post it for you.

  7. StangerBanger

    StangerBanger New Member

    Messages:
    72
    Likes Received:
    0
    Joined:
    Sep 13, 2013
    Awesome! thank you so much!

  8. ranger56528

    ranger56528 Active Member

    Messages:
    907
    Likes Received:
    0
    Joined:
    Aug 20, 2015
    Location:
    West central Mn
    Just got the car up sorry,I'll get a pic in a bit.

  9. ranger56528

    ranger56528 Active Member

    Messages:
    907
    Likes Received:
    0
    Joined:
    Aug 20, 2015
    Location:
    West central Mn
    A little cold in the shop but here are 2 pics,I forgot to put the nut back on glad this came up.[​IMG]https://vimeo.com/151425454yu


    Sent from my iPad using Tapatalk

  10. ranger56528

    ranger56528 Active Member

    Messages:
    907
    Likes Received:
    0
    Joined:
    Aug 20, 2015
    Location:
    West central Mn
    The one with the wire harness didn't turn out but same deal,the harness is right behind the two lines against the oil pan,it's all oily but you can kinda see the harness.


    Sent from my iPad using Tapatalk

  11. StangerBanger

    StangerBanger New Member

    Messages:
    72
    Likes Received:
    0
    Joined:
    Sep 13, 2013
    Sweet! Thats perfect man thank you
